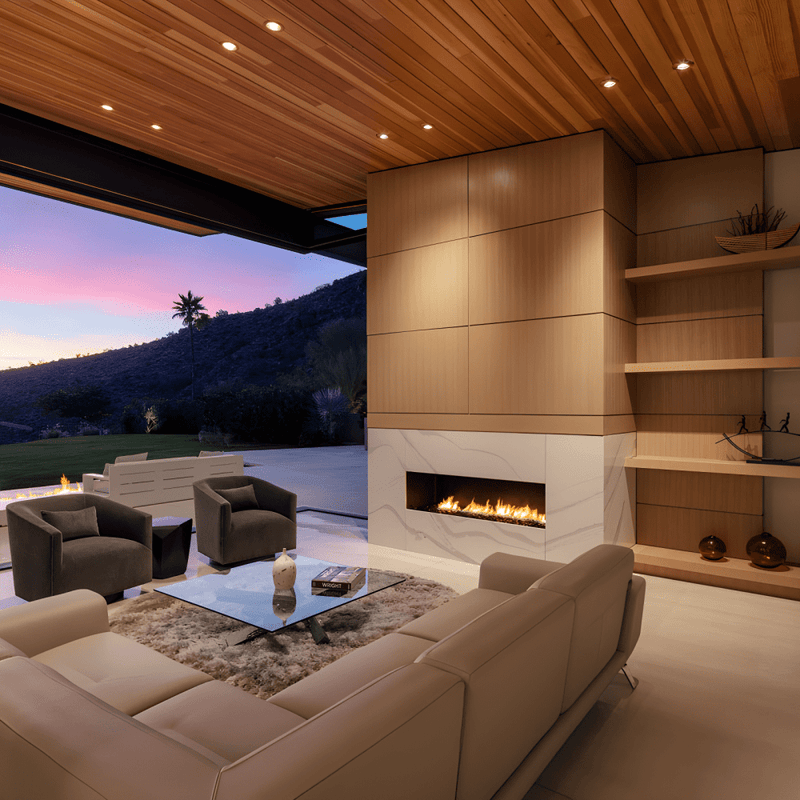

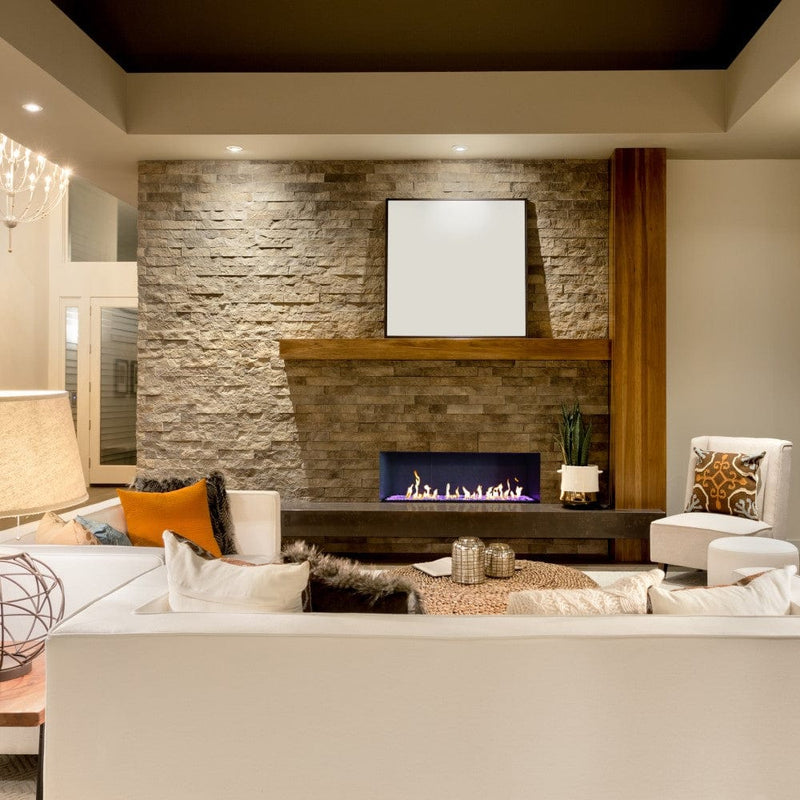

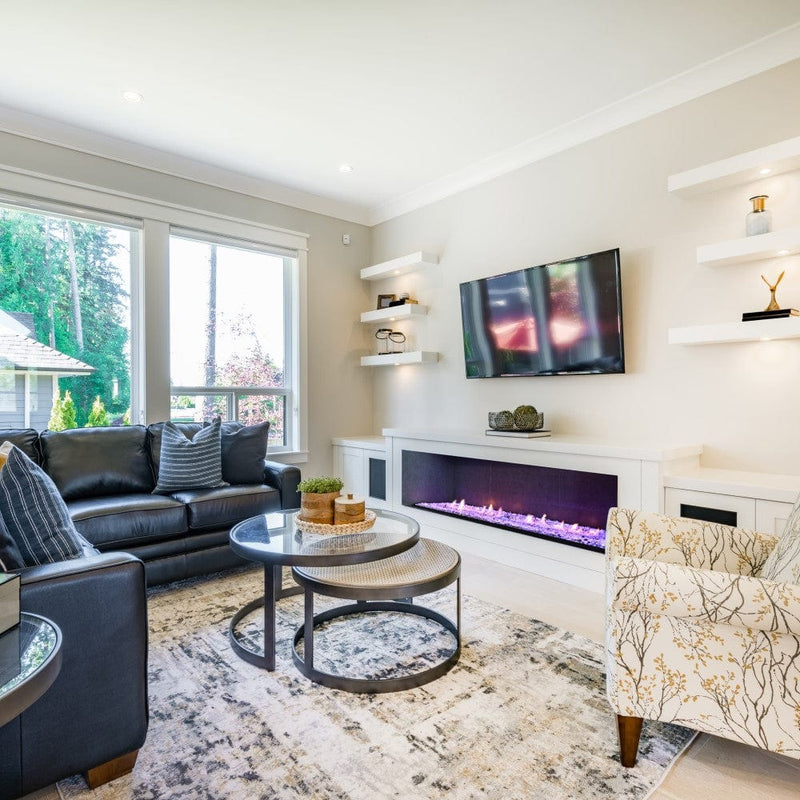

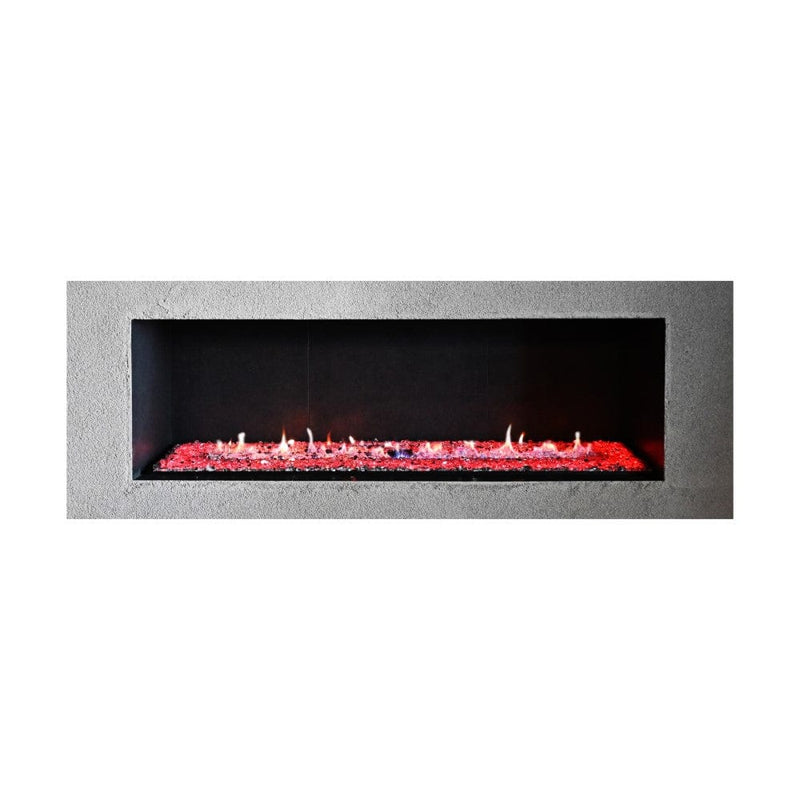

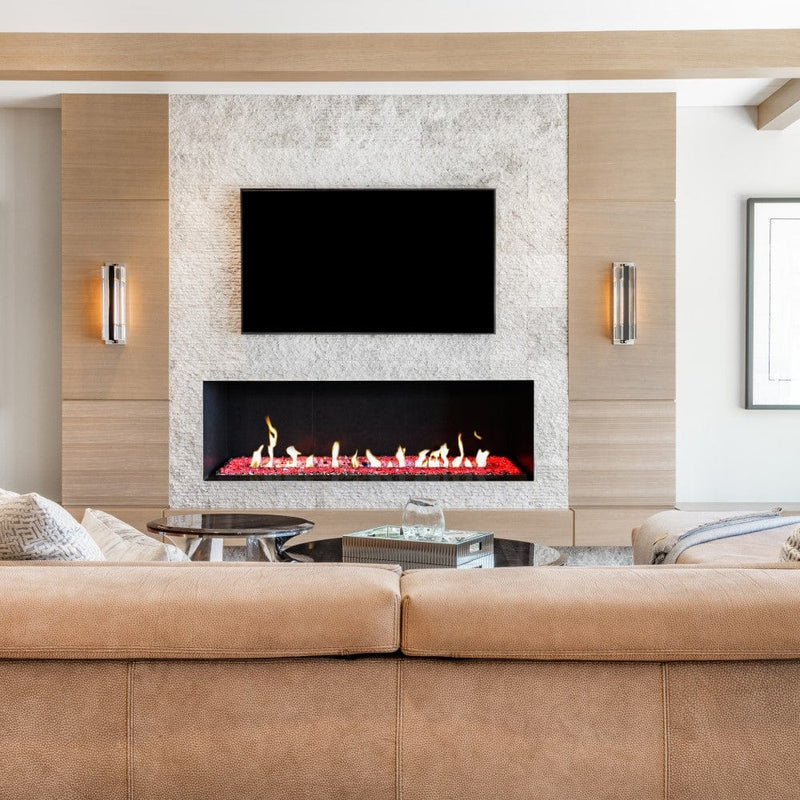

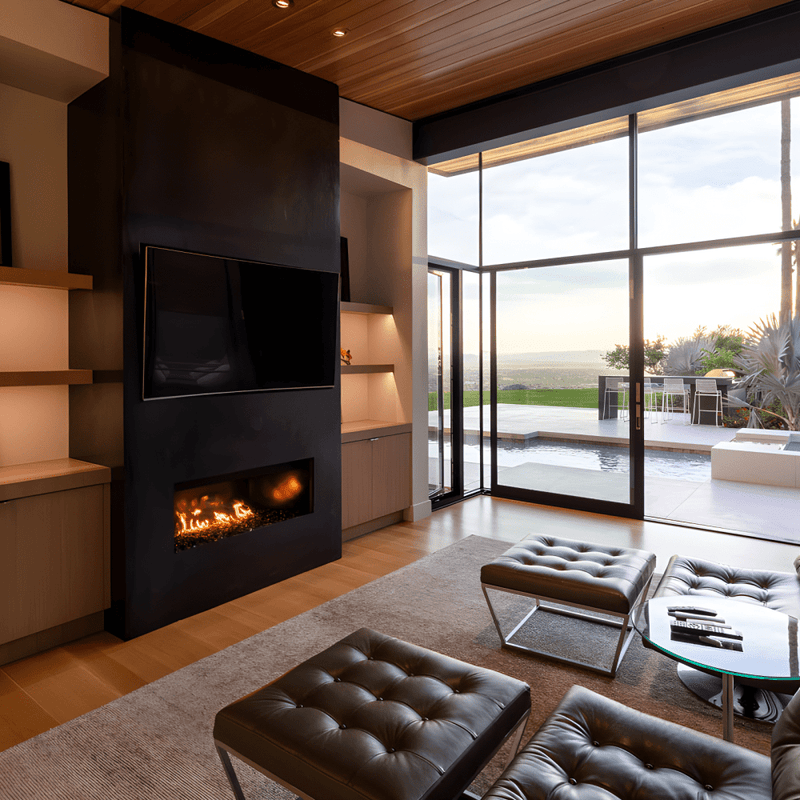

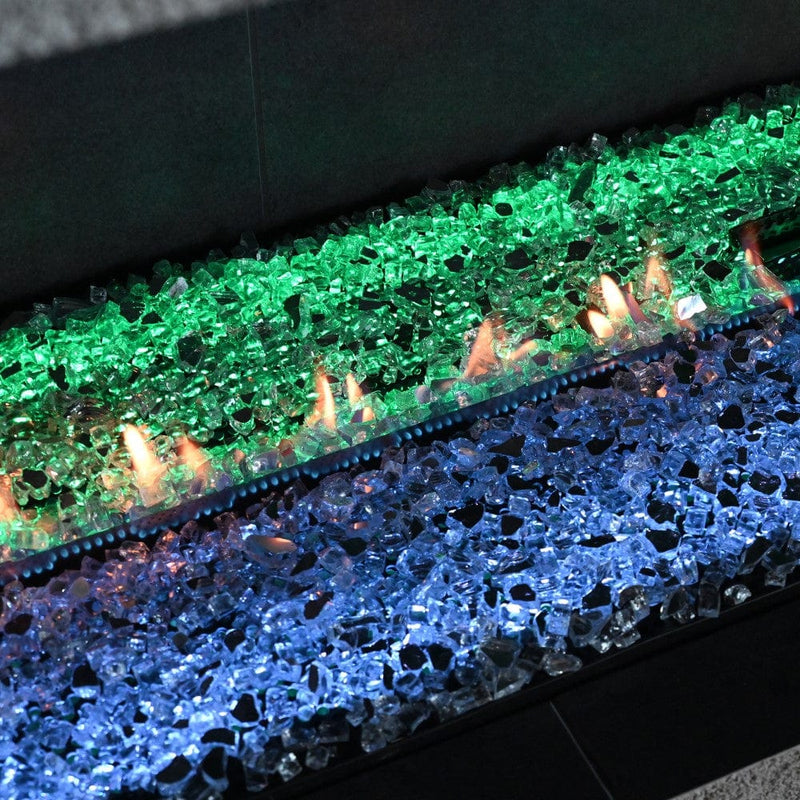

Enjoy full control, bold linear flames, and modern customization with the Grand Canyon Bedrock II Ventless Linear Drop-In Gas Burner. Designed for homeowners, designers, and builders who want more than a basic burner, the Bedrock II delivers a deep, glowing ember bed, adjustable flame height, and integrated LED lighting in a clean, contemporary linear format. Whether you are upgrading an indoor fireplace or building a custom covered patio fire feature, this system creates a striking focal point with reliable performance and refined aesthetics.
Available in multiple sizes, the Bedrock II adapts easily to custom fireboxes and trough installations. Its advanced S.I.T. Proflame II control system allows precise flame control via remote, while integrated LED lighting adds visual depth that can be adjusted by remote or app. Built for precision and durability, this burner offers fuel-specific operation, smooth flame presentation, and long-term reliability without sacrificing design flexibility.
Features
-
Ventless linear drop-in gas burner for indoor or covered outdoor installation
-
Available in 24", 36", 48", and 60" linear sizes
-
S.I.T. Proflame II control system with remote flame adjustment
-
Five flame height settings for customized fire presentation
-
Integrated LED lighting system with remote and app control
-
Two remotes included: one for flame control and one for LED lighting
-
Compatible with Natural Gas or Propane (not field convertible)
-

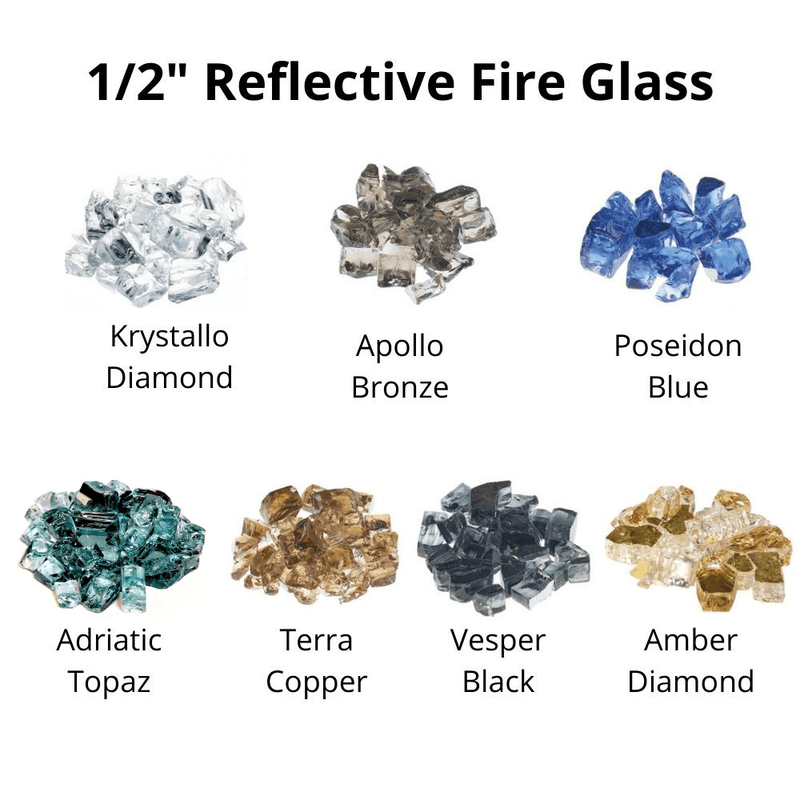

Designed for use with 1/2" reflective fire glass
-
110V plug-in or hardwire-ready
-
Precision-engineered burner for safe, efficient operation
-
PFS certified
-
Made in the USA
What’s Included
Specifications & Downloads
Performance, Weight, and Media Requirements
| Burner Size |
Max BTU Output |
Weight |

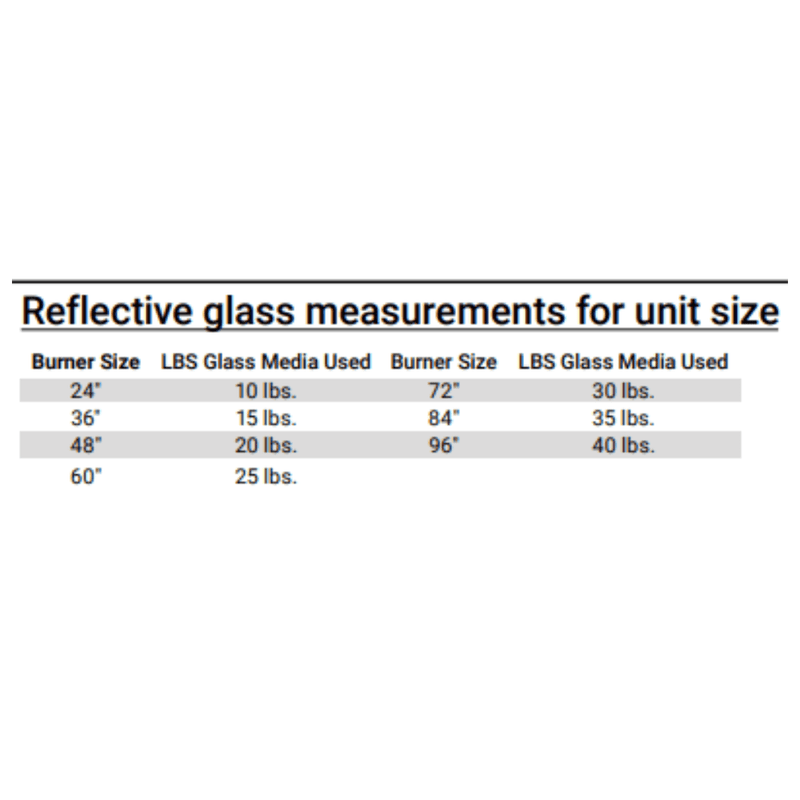

Recommended Fire Glass Amount |
| 24" |
30,000 BTU |
24 lbs |
10 lbs |
| 36" |
32,000 BTU |
36 lbs |
15 lbs |
| 48" |
39,500 BTU |
50 lbs |
20 lbs |
| 60" |
39,500 BTU |
61 lbs |
25 lbs |
Minimum Firebox Dimensions
| Burner Size |
Minimum Height |
Minimum Width |
Minimum Depth |
| 24" |
20" |
24" |
15" |
| 36" |
20" |
36" |
15" |
| 48" |
20" |
48" |
15" |
| 60" |
20" |
60" |
15" |
Certifications
Warranty
-
Lifetime Warranty on Burner
-
2-Year Warranty on Valves, Remotes, and Receivers
Downloads
WARNING: For safe operation and proper performance of this product and to comply with certification, listings, and building code acceptances, use ONLY Grand Canyon Gas Logs controls, parts & accessories that have been specifically listed or certified for use with this burner system. Use of other controls, parts, or accessories is prohibited and will void all warranties, certifications, listings, and building code approvals, and may cause property damage, personal injury, and loss of life.
