Modern Flames Allwood Fireplace Wall System for Spectrum Slimline 60" Electric Fireplace

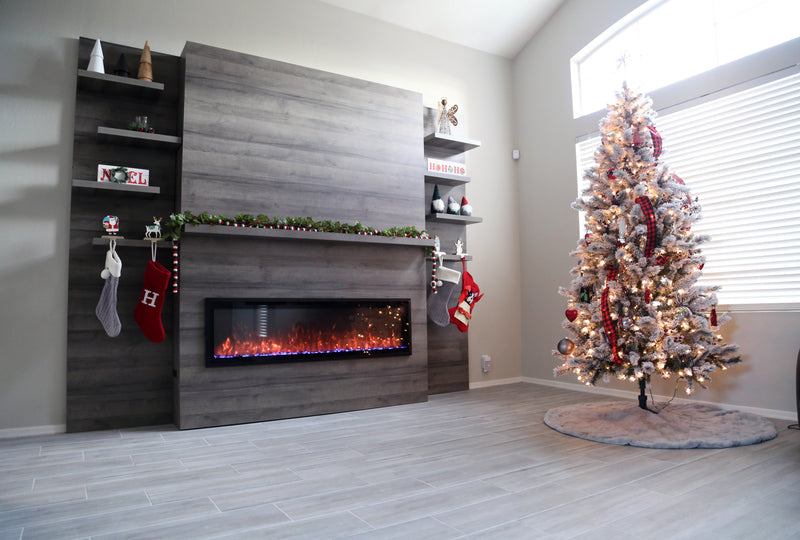

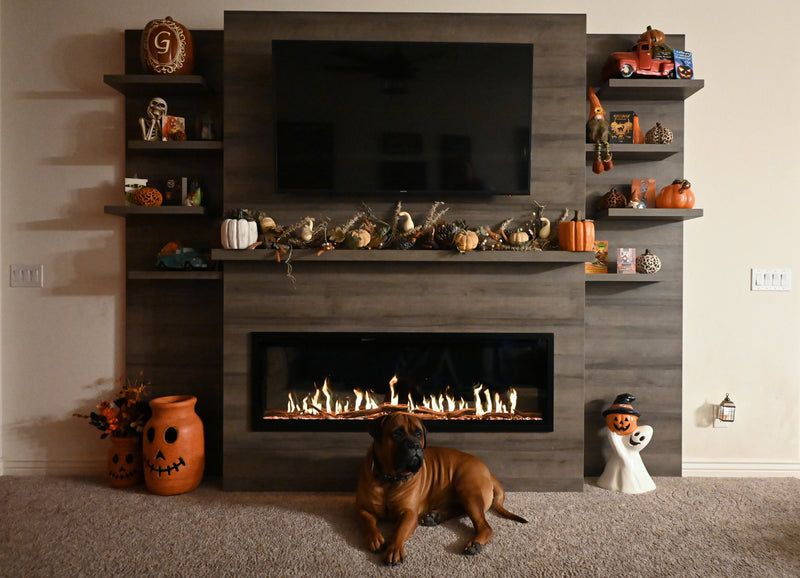

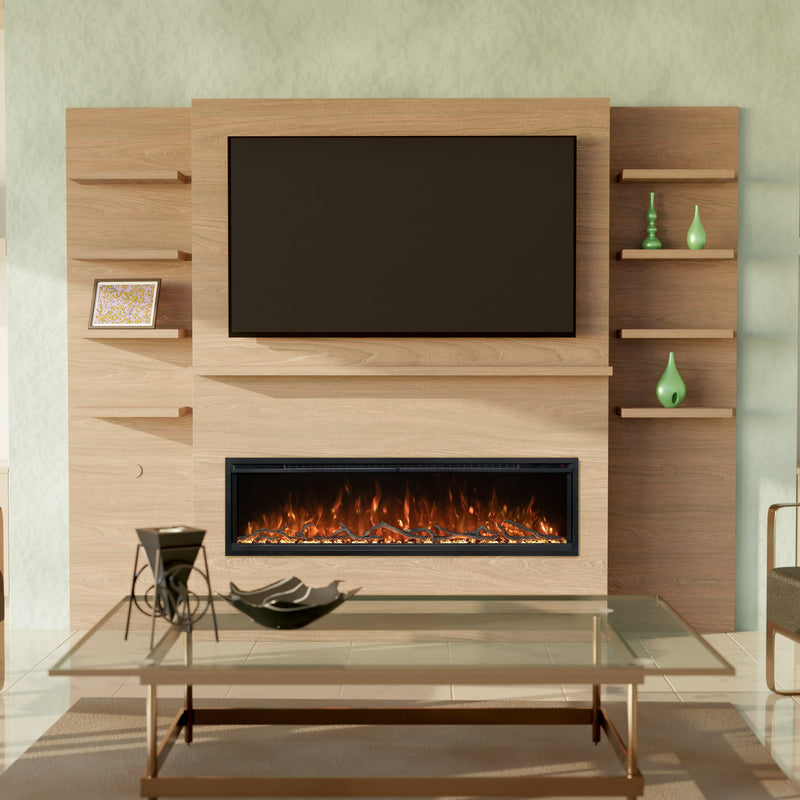

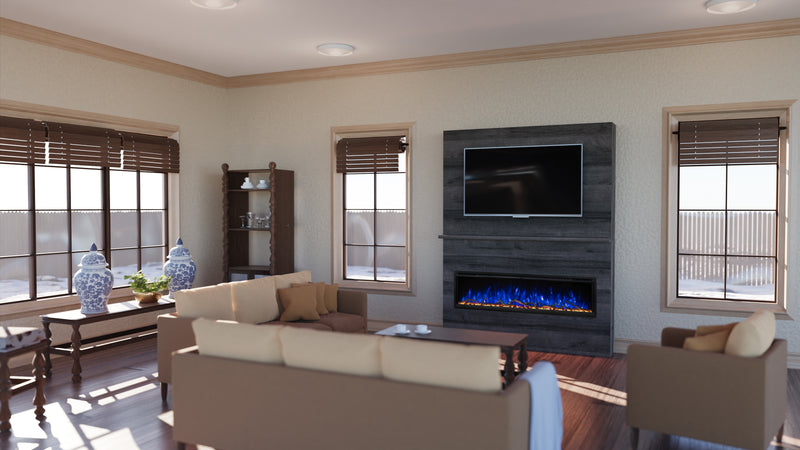

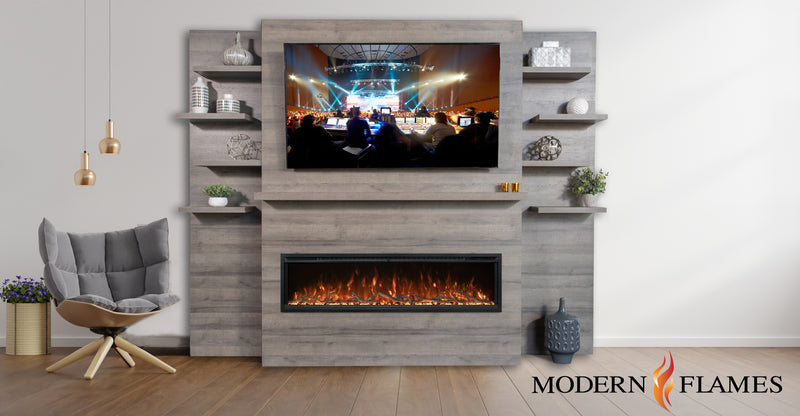

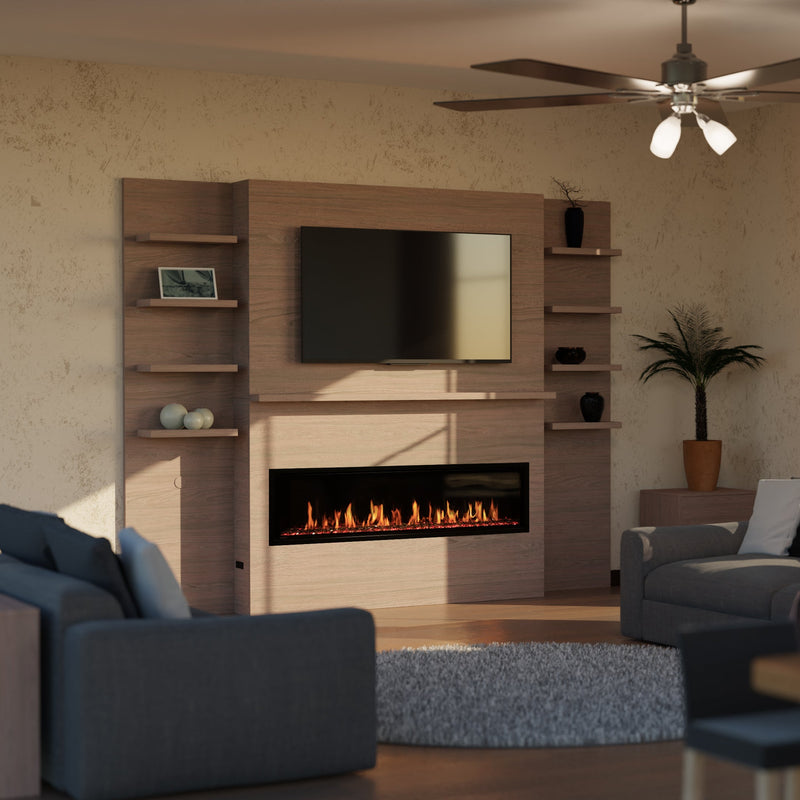

The Allwood Fireplace Wall System is a complete, pre-built wall and mantel unit designed to house the Modern Flames Spectrum Slimline 60" Electric Fireplace (SPS-60B) — which is required for operation and sold separately. Instead of framing out a wall from scratch, this system mounts directly to a permanent wall with the fireplace opening, mantel, and side shelving built in, giving you a finished fireplace-and-media wall without construction. Available in three finishes: Weathered Walnut, Coastal Sand, and Driftwood Gray.

Features

• Complete three-section wall system: two main wall sections, two side shelf wall sections (with 8 slide-in shelves total), and one Allwood mantel
• Fully assembled system fits a 10 ft. wide x 8 ft. high wall area; main wall section alone fits 6 ft. wide x 8 ft. high, or 8 ft. wide with one side shelf added
• Overall depth with mantel installed: 16-7/8"
• Mounts to a standard wood-stud or drywall wall; top and bottom frame assemblies each anchor to at least two studs
• Front facia is pre-cut for the fireplace opening; a TV cutout is not included and must be added separately if mounting a TV above the fireplace
• Side shelves slide in and reposition on removable pins for flexible display or storage layouts

What's Included

• 2 main wall sections (top and bottom frame assemblies)
• 2 side shelf wall sections with 8 slide-in shelves
• 1 Allwood mantel
• Complete hardware kit (mounting brackets, wall anchors, screws, wall cleats, shelf pins)
• Installation and owner's manual

Not included: Modern Flames Spectrum Slimline 60" Electric Fireplace (SPS-60B) — required for operation, sold separately. Outlet wall adapter also not included.

Specifications

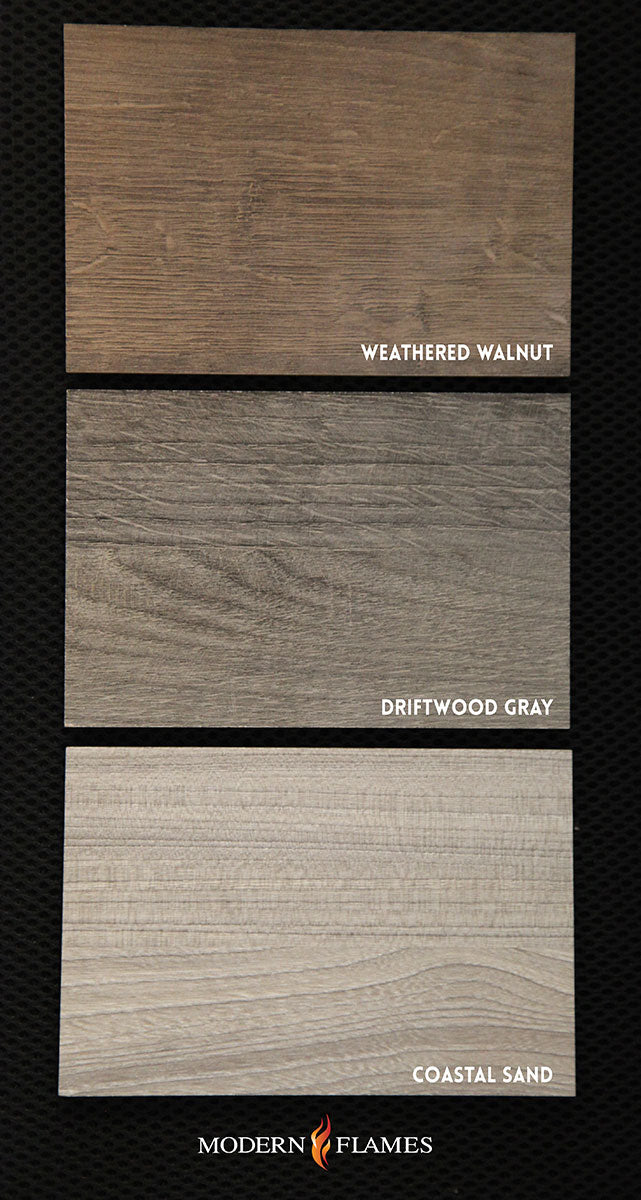

• Finish options: Weathered Walnut, Coastal Sand, Driftwood Gray
• Material: Solid plywood frame with Commercial Grade Laminate
• Complete wall unit footprint: 10 ft. W x 8 ft. H
• Main wall section only: 6 ft. W x 8 ft. H
• Main wall + one side shelf: 8 ft. W x 8 ft. H
• Overall depth with mantel: 16-7/8"
• Compatible fireplace: Modern Flames Spectrum Slimline 60" (SPS-60B), sold separately
• Wall mounting: wood stud or drywall, minimum two studs per frame section
• Warranty: 24 months parts (manufacturing defects), 12 months labor

Downloads

• Allwood Wall System Installation Guide (PDF)
