A see-through gas fireplace does something a standard unit cannot: it lets two adjacent spaces share the same fire. Whether the goal is a wall opening between a living room and dining area, a peninsula divider in an open floor plan, or a see-through feature in a covered outdoor space, the configuration you choose determines venting requirements, framing depth, and which products will actually fit. This guide covers the main types of see-through gas fireplace available, what drives the decision between them, and which models are worth considering at The Fireplace USA.
The most common see-through configuration splits a partition wall between two rooms, with glass panels on both faces. This works well between a living room and dining area, a bedroom and bathroom, or a kitchen and sitting room. The firebox occupies the cavity within the wall, and both sides get a full view of the fire.
Two-sided units divide sharply by venting type. The Monessen Lo-Rider 36" See-Through Gas Firebox ($1,819) is vent-free, which eliminates any exterior pipe penetration. That simplifies the installation but comes with trade-offs: vent-free units are not permitted in some jurisdictions, face bedroom-use restrictions in others, and release combustion byproducts and moisture into interior air. They work best in large, well-ventilated spaces where local code permits them.
The Sierra Flame Palisade 36" Direct Vent See-Through Linear Gas Fireplace ($4,299) uses a sealed direct-vent system: one pipe draws combustion air from outside, and a second exhausts combustion gases out. The Palisade vents from the side only, which affects chase and framing design. It produces 20,000 BTU at high, covers approximately 400 square feet, and fits into a framing depth of 10-7/8 inches. That makes it the most installation-friendly direct-vent see-through option in this group for existing or new partition walls.
Peninsula fireplaces extend into a room rather than sitting within a wall. Glass panels on the front face and both short sides create three viewing angles simultaneously. These units work well as room dividers in open floor plans, where a living area, dining zone, and kitchen can all share the same fireplace view.
The Sierra Flame Toscana 3-Sided Peninsula Gas Fireplace is available in 38", 48", and 58" sizes starting at $7,799. It uses a screen-free warm-touch glass system designed to keep surface temperature below 172°F, eliminating the safety screen that standard units require in front of the glass. Venting runs from the top via a 5" and 8" coaxial system. BTU output ranges from 24,500 BTU on high for the 38" to 40,000 BTU on high for the 58". Standard wood framing works because the unit is self-contained with no concrete board or metal stud requirements.

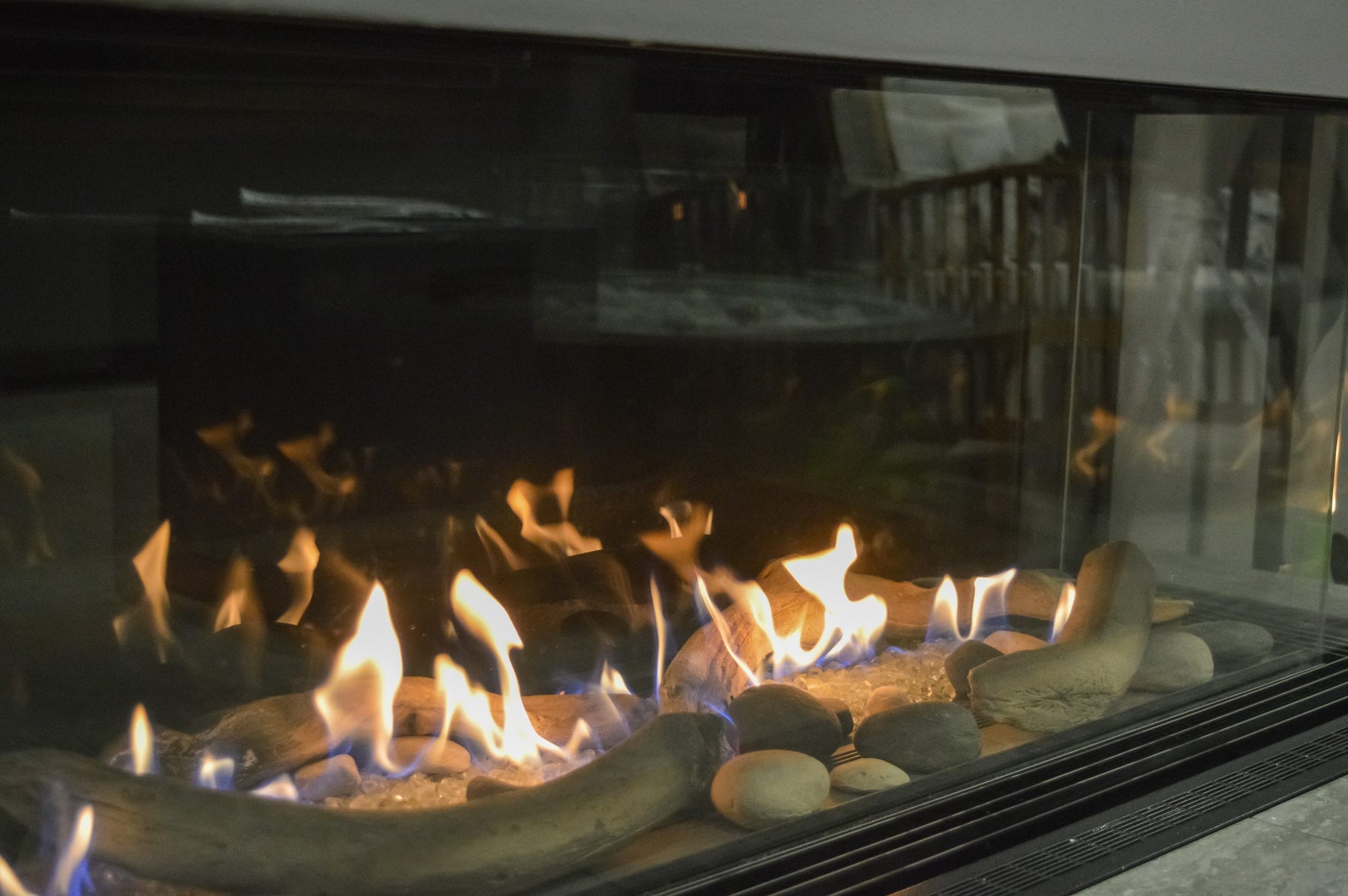

The Sierra Flame Toscana 3-Sided Peninsula Gas Fireplace creates a shared focal point visible from three directions in an open-plan space.
The Sierra Flame Lyon 48" 4-Sided See-Through Natural Gas Fireplace ($10,999) takes the peninsula concept further by adding glass on all four sides, creating a freestanding island unit visible from every direction in the room. It produces 32,500 BTU at high and requires natural gas only (propane is not available for this unit). The framing depth is 22.79 inches, which makes it a significant structural commitment that needs to be coordinated with a builder or contractor during rough-in.
Like the Toscana, the Lyon uses warm-touch glass and requires no safety screen. It vents from the top using the same 5" and 8" coaxial system, which gives more flexibility in routing the chase vertically through the ceiling framing.
Standard indoor see-through units are not rated for outdoor use. The Majestic Lanai 48" See-Through Vent-Free Outdoor Gas Fireplace ($5,199) is designed specifically for covered patio and outdoor living applications. It produces 55,000 BTU, requires no exterior venting, includes eight-color LED accent lighting, and features a stainless steel interior with glass wind guards. IntelliFire ignition provides reliable outdoor startup. The see-through configuration makes the flame visible from both the dining and lounge zones of an outdoor living space simultaneously.
The Superior Outdoor Linear Vent-Free Gas Fireplace ($5,389) offers an optional see-through glass panel configuration, which allows for initial single-sided installation with the option to add the second glass panel later.
Venting type is the first gate. Direct-vent units require a pipe route to the exterior and the venting direction (side-only for the Palisade, top-only for the Toscana and Lyon) determines whether a given unit fits the available framing. Vent-free units like the Monessen Lo-Rider and Majestic Lanai eliminate this constraint but are not universally permitted and carry combustion-air and moisture considerations indoors.
Framing depth before product selection. A standard 2x4 partition wall gives approximately 3.5 inches of usable depth. Even a 2x6 wall gives 5.5 inches. The Palisade requires 10-7/8 inches of framing depth. The Toscana requires approximately 18.5 inches actual. The Lyon requires 22.79 inches. Any see-through gas installation in a new or existing wall will almost certainly require a purpose-built chase deeper than a standard partition.
Gas type compatibility. The Lyon is natural gas only. The Palisade and Toscana are available in both natural gas and propane configurations. If the installation site has propane as the only fuel source, the Lyon is not an option.
Number of viewing sides versus room function. Two-sided units serve two separate rooms sharing a wall. Peninsula units serve one room from three angles, which works better in open floor plans. Four-sided units function as architectural centerpieces in very large open spaces. Each additional viewing side adds installation complexity and cost.
The Sierra Flame Lyon 48" 4-Sided See-Through Gas Fireplace functions as a freestanding island, visible from every direction in the room.
Kitchen and dining room divider: A two-sided see-through in the partition wall between a kitchen and dining room creates ambiance from both sides without blocking sightlines or adding a structural island. The Palisade 36" works here if the partition allows 10-7/8 inches of framing depth and side venting to the exterior is accessible from that wall location.
Open-plan great room divider: A peninsula unit like the Toscana 48" or 58" creates a soft room boundary in a large open floor plan. Both the seating area and an adjacent dining or kitchen space share the fire view without full visual enclosure between zones.
Primary bedroom and bathroom suite: A two-sided see-through between a master bedroom and bathroom is one of the more common applications for this configuration. Vent-free units simplify installation in this context but check local code for bedroom restrictions on vent-free gas appliances. A direct-vent unit is the more universally permitted option.
Covered outdoor living with dual-zone view: The Majestic Lanai 48" is built for this use case. Under a covered pergola or patio structure, the see-through configuration allows the flame to be visible from both a dining table side and a seating area side. The vent-free outdoor design and 55,000 BTU output suit the larger air volumes of outdoor environments.
Assuming vent-free is simpler everywhere. Vent-free units are operationally simpler in terms of installation but local building codes can rule them out entirely for a given location or room type. Check with your local building department and gas inspector before selecting a vent-free unit.
Not accounting for venting direction during framing. The Palisade vents from the side only. If the partition wall has no access to run venting laterally to the exterior, this unit will not work regardless of price or preference. Top-venting units like the Toscana and Lyon offer more routing flexibility through ceiling framing.
Underestimating framing depth requirements. The framing depth required for even the most compact see-through gas unit exceeds what a standard partition wall provides. Budget for a dedicated purpose-built chase in the project scope from the start, not as an afterthought once the product is on site.
Sizing BTU output for one room only. When a see-through fireplace is open to two rooms, it is heating a combined air volume. A unit rated for a specific square footage in a single enclosed room will perform differently when both sides open to larger connected spaces.
A see-through gas fireplace has glass panels on two or more sides, allowing the flame to be viewed from multiple directions or from two separate rooms through a shared wall. The most common version sits within a partition wall with glass on both faces. Peninsula and island configurations extend this to three or four sides.
Most indoor see-through gas fireplaces use direct vent, which requires a coaxial or two-pipe system drawing combustion air from outside and exhausting combustion gases outside. The venting direction (side, top, or flexible) varies by model. Vent-free units require no exterior venting but are subject to code restrictions that vary by jurisdiction and room type. For a detailed overview, see our full selection of gas fireplaces and venting configurations.
Yes, but the unit must be specifically rated for outdoor use. The Majestic Lanai 48" and Superior Outdoor Linear are both designed for covered outdoor applications. Standard indoor see-through units like the Sierra Flame Palisade and Toscana are not outdoor-rated and should not be used in exterior installations.
Prices start at $1,819 for the Monessen Lo-Rider 36" vent-free two-sided unit. Direct-vent two-sided models like the Sierra Flame Palisade 36" start at $4,299. Peninsula configurations start at $7,799 for the Sierra Flame Toscana. The Sierra Flame Lyon 4-sided island unit is $10,999. Installation costs vary significantly based on venting complexity, chase framing, and local labor rates and are separate from the unit price.
A peninsula fireplace is a specific type of multi-view fireplace with glass on three sides: the front face and both short ends. A standard see-through fireplace has two glass panels facing opposite directions, front and back. Both are types of multi-sided gas fireplace, but they serve different spatial functions and suit different room layouts.
