Every dimplex electric fireplace insert uses the same core idea, a self-contained electric firebox that drops into an existing opening or a framed wall cavity with no venting, gas line, or chimney required. Where the line actually splits between models is flame style, installation method, and price, and that is where most buyers get stuck comparing spec sheets that all sound similar. We compared Dimplex's current insert lineup side by side to sort out which series actually fits which install.
TL;DR
Dimplex splits its built-in insert lineup into two visual families. The linear family (IgniteXL, IgniteXL Bold, Ignite Evolve, Ignite Ultra) uses edge-to-edge glass and a wide, shallow firebox with color-changing flame effects aimed at a modern, minimalist look. The traditional family (Revillusion, Nova Multi-Fire XHD, Ignite Aspire) is built to replace an existing masonry or gas firebox with something that reads as a real fire, using log sets, ember beds, and in Revillusion's case, flames that originate from inside the logs rather than being projected onto a mirror behind them.

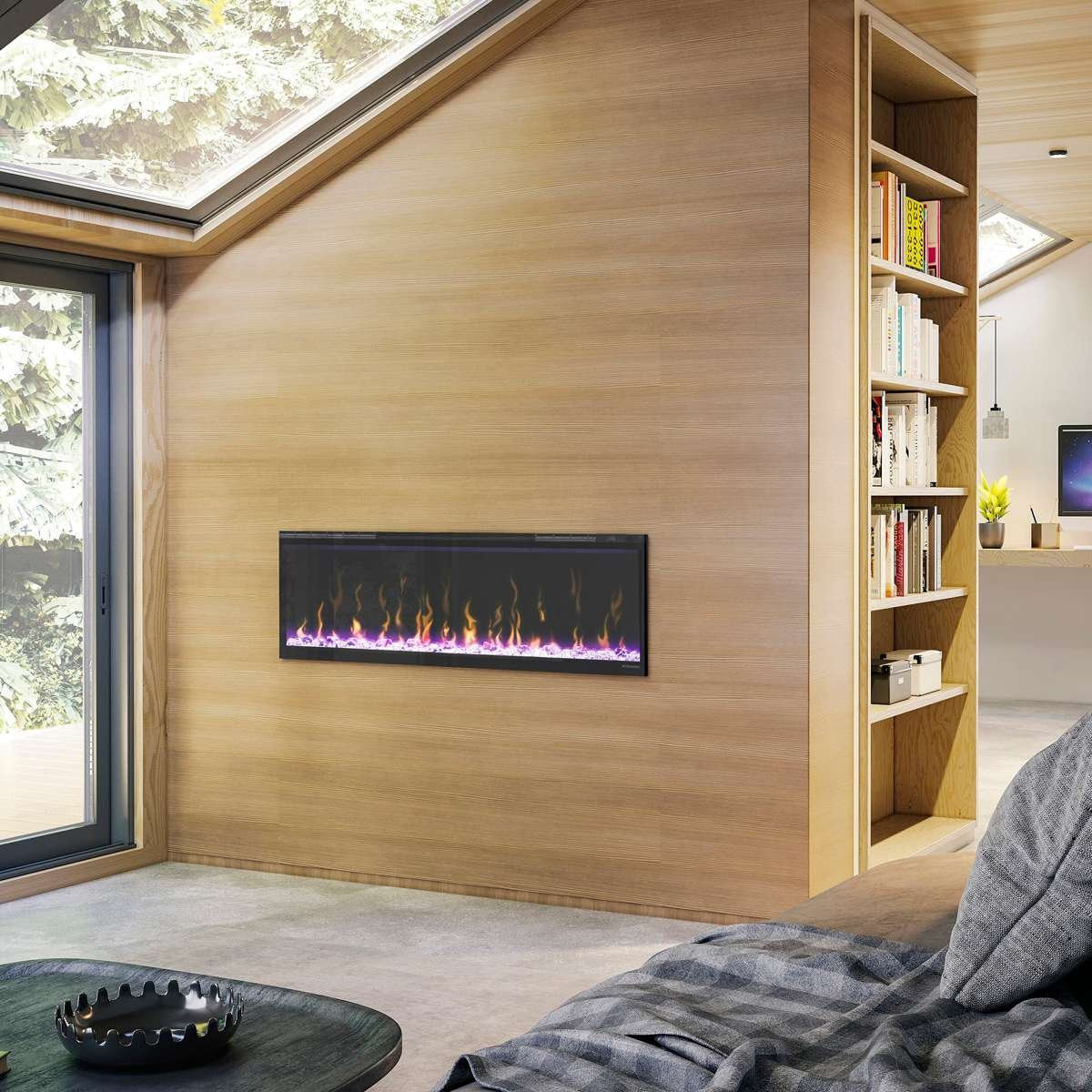

Within the linear family, IgniteXL is the volume model built for 2 inch by 6 inch wall recessing at sizes from 50" to 100", while Ignite Evolve builds on the same platform with upgraded driftwood-style media, and Ignite Ultra adds a 3-sided viewing option and synchronized crackling sound for a higher price point. Within the traditional family, the Nova Multi-Fire XHD is a 120-volt plug-in firebox sized for DIY installs into an existing opening, while Revillusion and Ignite Aspire step up to hardwired, multi-voltage installs with more realistic flame and log detail.

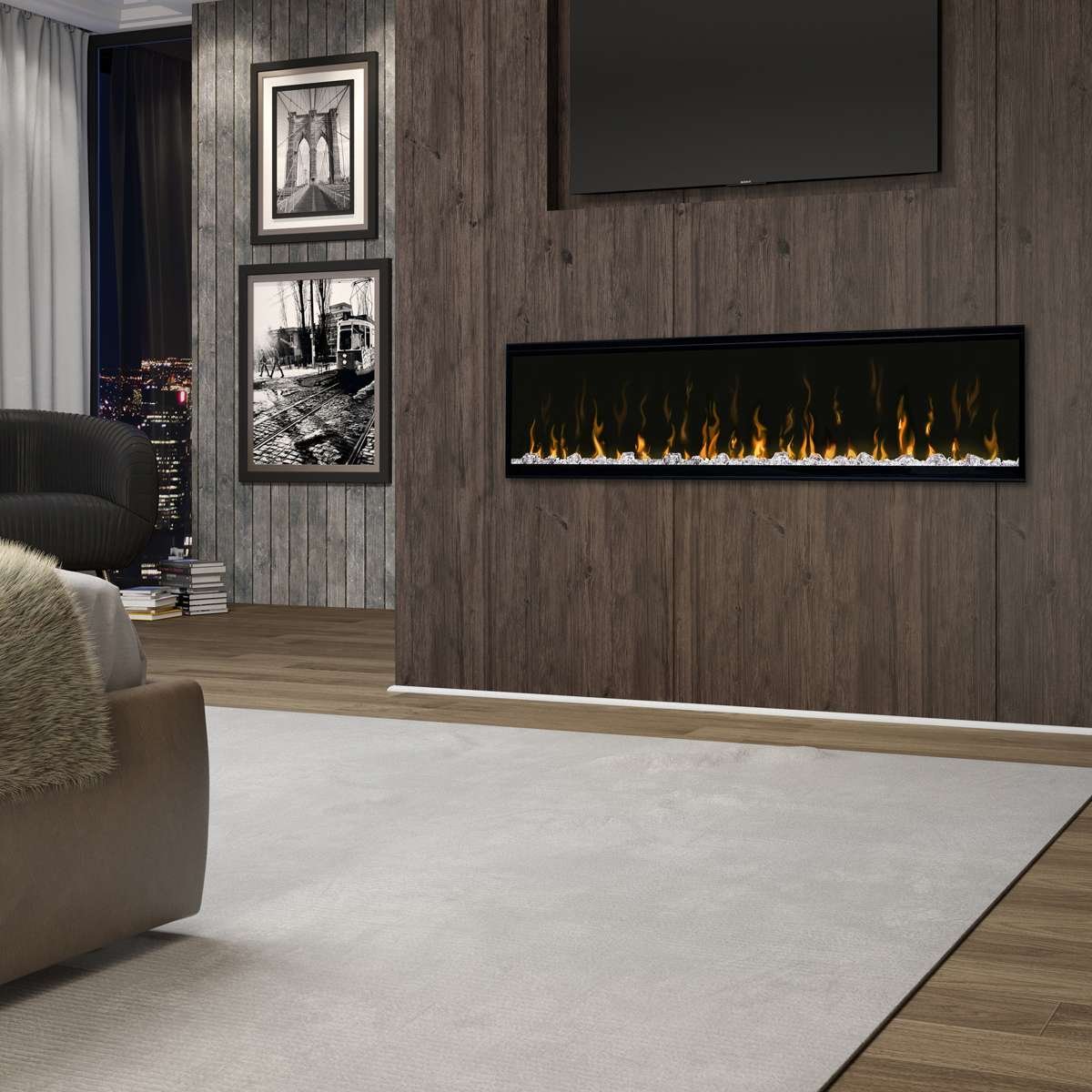

Our Top Pick: Dimplex IgniteXL 60, the volume model in the linear insert family
Start with installation depth and power requirements, since those two numbers eliminate most of the field before flame style even enters the decision. The IgniteXL 60 recesses into a standard 2x6 wall at roughly 5.9 inches deep and runs on 120V (1,500W, 12.5A) or 240V (2,500W, 10.4A) for its full 8,530 BTU output. Revillusion's 36" model needs a deeper firebox opening at 12.1 inches and supports 120V, 208V, or 240V circuits, topping out at 8,794 BTU on the highest voltage setting. If you are retrofitting an existing masonry firebox, that extra depth on Revillusion usually is not a problem since the opening is already deep. If you are building a new stud wall specifically for the insert, the IgniteXL's shallower depth is the easier, cheaper framing job.
Heating area is the next filter. Every Dimplex insert we checked tops out at up to 1,000 sq ft on its highest voltage setting, which is enough for an open living or great room but not a whole floor. If a single insert needs to heat more than that, plan on it as supplemental heat alongside your existing HVAC rather than a primary source.

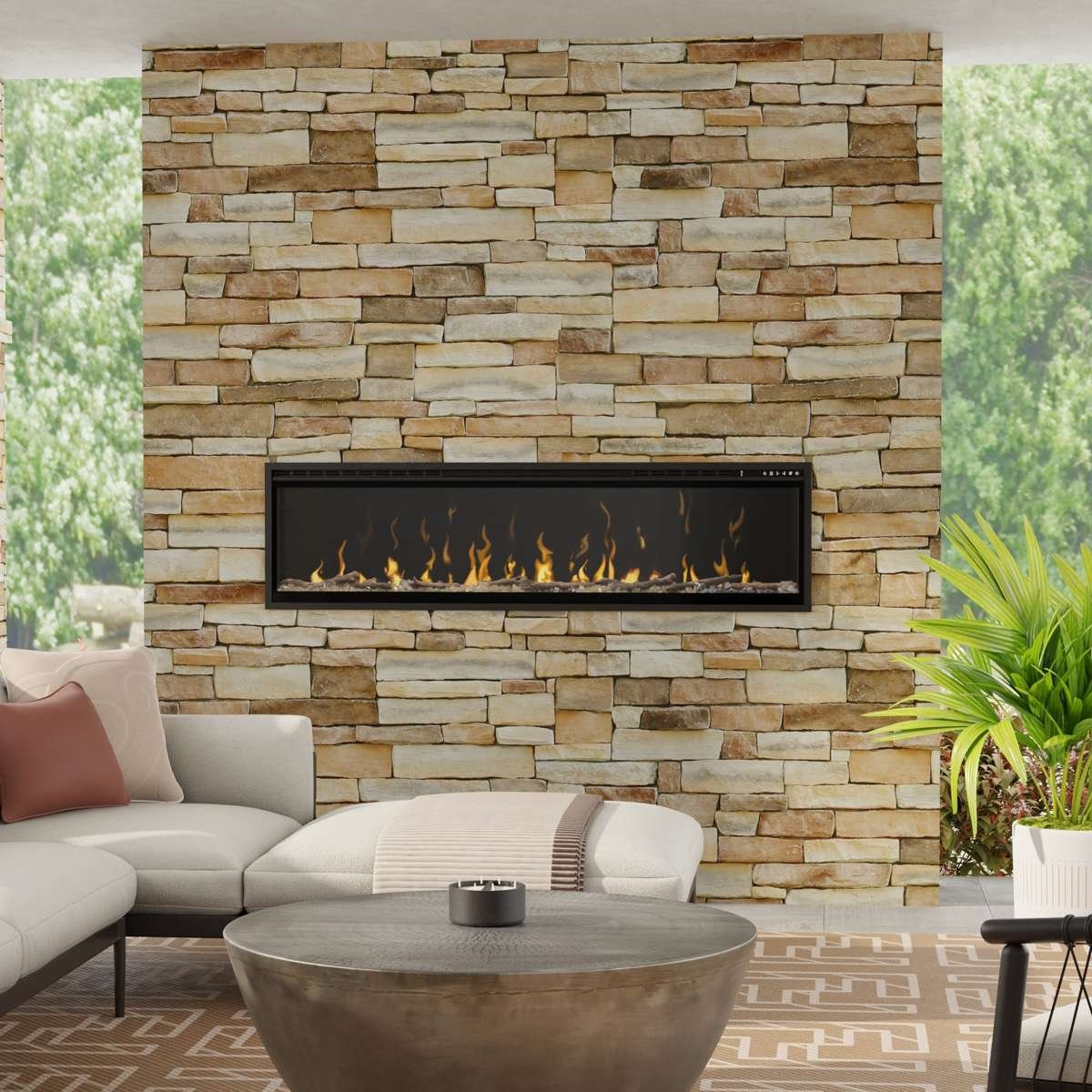

Worth Considering: IgniteXL's shallow recess depth also makes it workable on covered outdoor walls, unlike deeper traditional-style inserts
Retrofitting an existing gas or wood-burning fireplace opening: Revillusion is built specifically for this, since it is designed to drop into a real firebox cavity and uses four interchangeable interior liner finishes to match different masonry styles. New construction or a stud wall you are framing from scratch for a modern, minimalist look: IgniteXL is the more straightforward install at 5.9 inches of depth, and it is available up to 100" wide for a full media-wall installation.
Budget-conscious DIY install into an existing opening: the Nova Multi-Fire XHD plugs into a standard 120V outlet with no electrician required, at roughly a sixth of the price of the premium Ignite Aspire. Premium showpiece installation where realism and sound matter as much as heat: Ignite Ultra and Ignite Aspire add synchronized crackling sound and more elaborate pulsing log effects, at a meaningfully higher price than the rest of the lineup.
Do not assume plug-in means lower-cost only. The Nova Multi-Fire XHD is genuinely a budget entry point, but every other model in Dimplex's insert lineup needs a dedicated circuit run to the install location, and on a 240V model that is an electrician job, not a DIY afternoon. Price that into your budget before you compare unit prices side by side, since a cheaper fireplace with a harder electrical install can end up costing more installed than a pricier plug-in unit.
Also confirm your actual opening or framing dimensions against the model's overall dimensions, not just the nominal size in the name. A "36-inch" insert is sized by its nominal viewing or media width, and the true framing opening typically runs slightly larger on every side. Order the wrong depth for a masonry retrofit and you either have to modify the firebox or return the unit, so measure the existing opening before ordering rather than after it arrives. It is also worth checking what media and trim options ship in the box versus what is sold separately. Revillusion ships with its full log grate, front glass, plug kit, remote, and manual included, while accessories like reflective fire glass, mesh screens, and optional trim kits for narrower stud walls are typically priced and sold on their own. For the full current lineup and pricing, browse the electric fireplace inserts collection, or see the complete Dimplex catalog if you are also considering their standalone linear and vapor fireplace lines.
What is the difference between IgniteXL and Revillusion?
IgniteXL is a modern linear insert with a shallow 5.9 inch recess depth and color-changing flame effects. Revillusion is styled after a traditional wood-burning fire, with flames rising from inside a log grate, and it needs a deeper firebox opening around 12 inches.
Can I install a Dimplex insert myself?
The Nova Multi-Fire XHD plugs into a standard 120V outlet and is DIY-friendly. Every other model in the lineup requires a hardwired circuit, which typically means hiring a licensed electrician, especially for 240V installations.
How much heat do these inserts actually provide?
Coverage tops out at up to 1,000 sq ft on the larger models at their highest voltage setting. Treat any electric fireplace insert as supplemental heat for the room it is in, not a replacement for central heating.
Do these inserts work outdoors?
Most of Dimplex's insert lineup, including Revillusion and Nova, is built for indoor installation only. Always check the specific model's rating before planning an outdoor or covered-patio install, since outdoor-rated Dimplex products are sold as a separate line.
What is the warranty on Dimplex inserts?
Warranty terms vary by series. The IgniteXL carries a 5-year manufacturer warranty, while Revillusion carries a 2-year manufacturer warranty. Confirm the exact term for your specific model before purchase.
