A gas fireplace pilot light that won't stay lit is one of the most common service calls in the heating season. In the majority of cases the cause is a dirty or failing thermocouple or thermopile, components that cost under $30 and can be replaced in under an hour with basic tools. This guide walks through how to diagnose the problem, what you can safely fix yourself, and when a technician is the right call.
Worth noting upfront: most modern gas fireplaces, including newer models from Monessen and Majestic, are available with IPI (Intermittent Pilot Ignition), which lights the pilot on demand and does not keep it burning continuously. This post focuses on standing pilot (millivolt) systems, which maintain a small flame at all times and are the setup where pilot dropout issues most commonly arise.
Before you start, gather the following:
A standing pilot gas fireplace keeps a small continuous flame burning in the firebox. That flame serves two purposes: it heats the thermocouple (a safety sensor that signals the gas valve to stay open) and it provides ignition for the main burner when you turn the fireplace on.
The thermocouple generates a small DC voltage, typically 25 to 30 millivolts, from the heat of the pilot flame. The gas valve uses this voltage as a signal that the pilot is lit and the valve is safe to hold open. If the voltage drops below roughly 25mV, the valve closes automatically. This is a safety feature: it prevents unburned gas from entering the firebox if the pilot blows out.
Some fireplaces also use a thermopile, which generates significantly more voltage, typically 300 to 750mV, and powers the main gas valve when you turn the fireplace on. If the thermopile is failing, you will often see the pilot stay lit but the burner fail to ignite when you try to operate the fireplace.

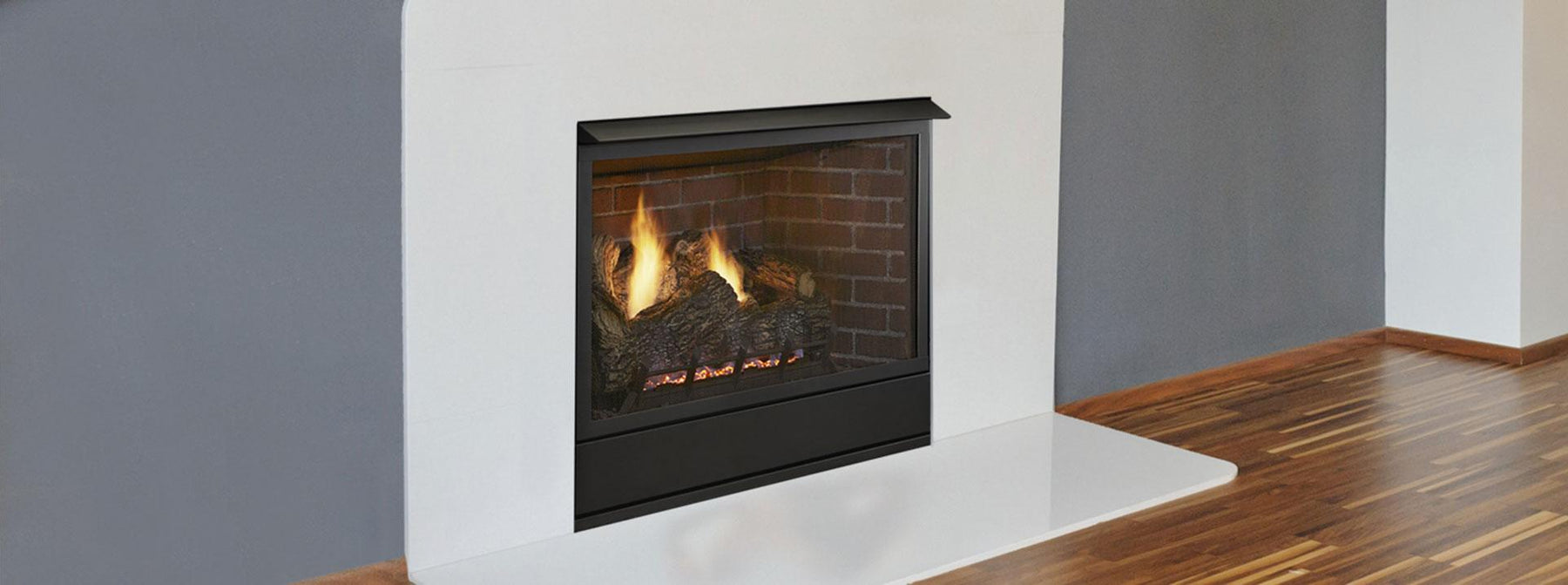

A Common Setup: Monessen Aria 32" Vent-Free Gas Fireplace
The most common cause by far. Over time, soot and oxidation build up on the thermocouple tip, reducing its ability to generate sufficient voltage. If the pilot light goes out the moment you release the pilot button after holding it for 30 seconds or more, this is the likely culprit.
To check: turn off the gas, let the unit cool fully, and carefully clean the thermocouple tip with fine-grit sandpaper or steel wool. If the problem returns or the tip looks corroded, use a multimeter to measure voltage output. A healthy thermocouple reads 25mV or higher when the pilot is lit and the tip is fully heated. Below 25mV, replace it. Replacement thermocouples are inexpensive and available by model number.
If your pilot stays lit but the fireplace burner won't ignite when you switch it on, the thermopile is the first thing to check. Like the thermocouple, it degrades with use. Test with a multimeter: a healthy thermopile reads between 300 and 750mV. Below 300mV, replace it.
The pilot orifice is a small brass fitting with a tiny opening that meters gas flow to the pilot flame. Dust, debris, and spider webs (a surprisingly common culprit in seasonal fireplaces) can partially block it, producing a weak flame that does not fully engulf the thermocouple tip.
A properly aimed, healthy pilot flame should wrap around the tip of the thermocouple completely. If the flame is small, yellowish, or off-center, the orifice may be clogged. Cleaning it with compressed air often resolves the issue. If the clog is stubborn, remove the orifice and clear it carefully with a thin wire.
Vent-free gas fireplaces, including the Monessen Aria 32" Vent-Free Gas Fireplace, include an Oxygen Depletion Sensor (ODS). The ODS continuously monitors ambient oxygen levels and shuts off gas flow automatically if oxygen concentration drops below approximately 18 percent, before carbon monoxide can accumulate to dangerous levels.
If the room is small, tightly sealed, or lacks adequate fresh air circulation, the ODS may trip even when the pilot flame looks healthy. The ODS system can also accumulate dust on a small air intake port on the back of the pilot tube. Cleaning this port with compressed air resolves the issue in a high percentage of cases. If you suspect the ODS is tripping due to low oxygen, open a window briefly and try relighting. If the pilot now holds, ventilation is the limiting factor.
Direct-vent gas fireplaces, such as the Majestic Meridian Direct Vent Gas Fireplace, use a sealed combustion chamber and draw outdoor air through a coaxial vent pipe. A damaged vent cap, bird nest, or strong wind event can create a downdraft sufficient to extinguish the pilot flame. Check the vent termination for obstructions and inspect the vent cap for damage or dislodgement.
Less common but worth ruling out: confirm the manual shut-off valve on the gas line to the fireplace is fully open, and verify that other gas appliances in the home are operating normally. If multiple appliances are affected, contact your gas utility.
Also Available in Millivolt Control: Monessen Symphony 32" Vent-Free Gas Fireplace
Work through these steps in order before replacing any parts:
If the pilot holds after cleaning, monitor it through the next several uses. A thermocouple that passes testing but fails again within a week is wearing out and should be replaced proactively rather than waiting for a cold-weather failure.
Stop work and call a licensed gas technician if any of the following apply:
Annual professional servicing is a reasonable baseline for any gas fireplace used as a primary heat source. A technician will check gas pressure, inspect vent integrity, clean the burner assembly, and verify that all safety shutoffs are functioning correctly.
Standing pilot fireplaces benefit from a brief inspection at the start of each heating season:
If your fireplace has not been professionally serviced in more than two years, schedule a cleaning before problems develop. If you are considering an upgrade, browse our full selection of gas fireplaces, including newer models with IPI ignition that eliminate the standing pilot and its associated maintenance entirely.
Holding the pilot button manually bypasses the thermocouple safety shutoff. When you release it, the gas valve depends on thermocouple voltage to stay open. If the pilot goes out at that point, the thermocouple is not generating enough voltage. Clean the tip first; if the problem persists, test the output with a multimeter and replace if it reads below 25mV.
Yes. For most gas fireplaces the relighting procedure is safe to perform yourself and is outlined in your owner's manual. Turn the control to OFF, wait at least five minutes, then turn to PILOT and hold the ignition button while pressing the pilot igniter. Always work in a well-ventilated area, and do not attempt to relight if you smell gas.
A healthy pilot flame should be predominantly blue with a small orange tip. A fully yellow or orange flame indicates incomplete combustion, often caused by a partially clogged pilot orifice or insufficient air supply. Address this before the next use: a poorly burning pilot can produce elevated carbon monoxide levels, particularly in vent-free fireplaces.
Inspect and clean the pilot assembly at the start of each heating season. Professional servicing, including gas pressure checks, burner inspection, and vent cleaning, is recommended annually for frequently used fireplaces and every two years for occasional-use units.
Many fireplaces include both. The thermocouple is a thin single-junction probe positioned close to the pilot flame; it keeps the pilot gas valve open. The thermopile looks similar but contains multiple junctions and generates more voltage; it powers the main burner valve when you switch the fireplace on. Your owner's manual or the control valve label will specify which your unit uses.
ODS stands for Oxygen Depletion Sensor. It is a safety device found exclusively in vent-free gas fireplaces, including the Monessen Symphony 32" Vent-Free Gas Fireplace. The ODS monitors room oxygen levels and shuts off gas flow if they drop to an unsafe level. Direct-vent fireplaces do not have an ODS because they use outdoor air for combustion.
