A direct vent gas fireplace draws combustion air from outside your home through a sealed coaxial pipe system and exhausts all combustion gases back out the same way. Nothing enters your living space. That sealed combustion design is what sets direct vent gas fireplaces apart from B-vent and vent-free alternatives, and it is why they are the most common gas fireplace type installed in new construction and remodels today.
This guide covers how the venting system works, how to size BTUs for your room, what stylistic choices to make between traditional and linear formats, and which models at The Fireplace USA gas fireplace collection are worth considering based on your space and budget.
The defining feature of a direct vent gas fireplace is its sealed firebox and dedicated two-pipe venting system. A coaxial vent kit uses a pipe-within-a-pipe design to handle both intake and exhaust simultaneously: the inner pipe carries combustion exhaust out; the outer pipe pulls fresh outdoor air in. Both functions run through a single penetration in your wall or roof, which simplifies installation compared to a B-vent system that requires a full vertical chimney chase.
From there, the vent can terminate two ways:
Majestic's Meridian and Echelon II series use the SLP proprietary pipe system. The Sierra Flame Vienna uses a 4-inch exhaust by 7-inch intake configuration compatible with certified Duravent, Selkirk, Metal-Fab, and ICC systems. Check the installation manual for your specific model before ordering vent components, as mixing systems or exceeding the maximum vent run length can affect performance and voids the certification.
Direct vent gas fireplaces fall into two broad design categories: traditional and linear.
Traditional models feature a square or arched viewing area with a log set and interior refractory panels. They sit within a standard framing opening and suit rooms where a classic hearth look fits the architecture. The Majestic Quartz Direct Vent Gas Fireplace is the entry point in this category, available in 32", 36", and 42" sizes starting at $2,259. Its 16 5/16" depth is noticeably slimmer than most comparable units, making it useful in tighter framing conditions or rooms where projection is a concern. Heat output runs 18,500 to 28,500 BTU across all three sizes.
Stepping up, the Majestic Meridian (36" and 42", starting at $3,069) adds customization including choice of brick or black glass interior panels, optional fan kit, and IntelliFire smart control compatibility. The 36" model produces 16,000 to 30,000 BTU on natural gas; the 42" reaches up to 35,000 BTU, enough to heat rooms up to around 700 square feet in a well-insulated home. For higher BTU output in the same footprint, the Majestic Meridian Platinum (starting at $4,799) delivers up to 40,000 BTU on the 36" and 45,000 BTU on the 42", with a wider range of interior and front options including reflective black glass panels and multiple refractory choices.
Linear models have wide, low viewing areas that run horizontally. They work with glass, stone, or driftwood media rather than traditional log sets and suit contemporary or transitional interiors. The Majestic Echelon II is available in 36", 48", 60", and 72" widths (starting at $4,579) and outputs 27,000 to 58,000 BTU depending on size. LED lighting, reflective black glass panels, and optional Heat Zone or Heat Out accessories are included or available. For the premium tier, the Sierra Flame Vienna (40", 50", 60", starting at $6,399) uses a patented technology that integrates all venting components within the firebox itself, delivering a clean-face installation with no visible heat discharge gaps along the top.
A Strong Contender for Open Floor Plans: Majestic Echelon II
After settling on a style, four decisions drive the rest of your selection.
BTU sizing. A general starting point is 20 BTU per square foot of room area, adjusted upward for high ceilings, poor insulation, or a cold climate. A 300 sq ft bedroom needs roughly 6,000 to 9,000 BTU of supplemental heat; a 600 sq ft open-plan living room needs 12,000 to 18,000 BTU or more. Most direct vent units modulate between low and high settings, so a model whose high output exceeds your needs is not necessarily a problem as long as the low setting stays comfortable. Do not buy a model whose maximum output falls meaningfully below your calculated need.
Venting direction. Determine where your vent will exit the building before ordering. Horizontal termination through an exterior wall is simpler and less expensive in most cases. If the fireplace is on an interior wall or above the first floor, vertical termination may be required. Review the maximum vent run length for your specific model, as total horizontal and vertical footage plus each elbow counts against that limit.
Fuel type. Most models are available in natural gas (NG) and liquid propane (LP) configurations at the same price point. If you are on a propane system, confirm LP availability before ordering. BTU output on LP is sometimes different from NG at the same setting. The Meridian 36" NG delivers up to 30,000 BTU at high while the LP version reaches 28,000 BTU at high, for example.
Controls and smart home. Majestic's IntelliFire ignition system supports the IntelliFire app, smart speaker integration, touchscreen remote, and wall switch control. This is standard across the Meridian, Echelon II, and Quartz lines. The Sierra Flame Vienna includes electronic ignition with modulating flame control. All models include battery backup for operation during power outages.

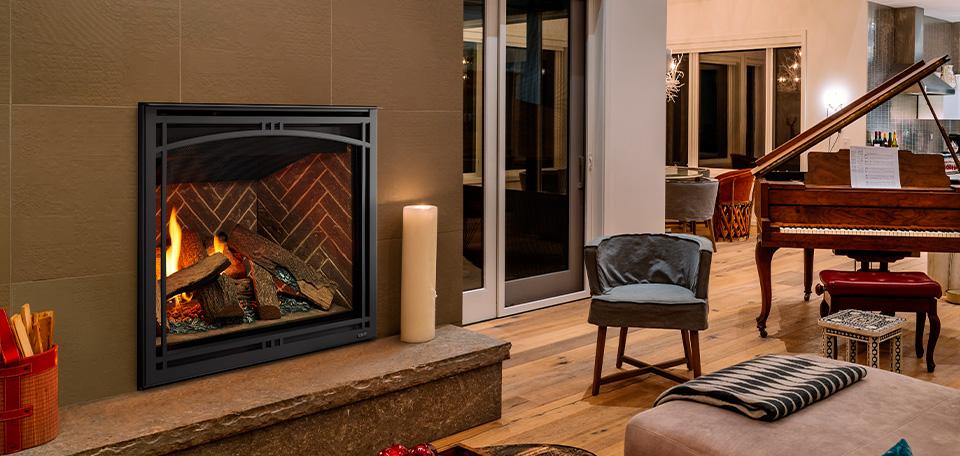

Our Top Pick for Traditional Spaces: Majestic Meridian Platinum
The right model depends on both room size and how the fireplace will fit into the space.
Primary heat source for a living room or family room (300 to 700 sq ft): The Meridian 42" or Meridian Platinum 36" to 42" both output enough BTU to meaningfully heat this range. The Platinum's higher BTU ceiling (up to 45,000 BTU on the 42") is an advantage in rooms with vaulted ceilings or poor insulation. Adding the optional heat management kit improves distribution.
Accent or supplemental heat for a bedroom or study: The Quartz 32" is purpose-built for tighter spaces. At 34 3/8" tall and 36" wide, it fits framing that a Meridian would not, and its slim 16 5/16" depth reduces projection into the room. Heat output is adequate for supplemental warmth in 200 to 350 sq ft.
Statement piece in a contemporary open-plan space: A linear fireplace at 48" or wider reads as architectural rather than just functional. The Echelon II 48" has a 51 1/8" wide viewing area that works well as a focal wall in a larger living or dining area. The Vienna 50" or 60" suits high-end installations where the fireplace is the design centerpiece. The clean-face installation and wide glass viewing area are particularly effective in minimalist or mid-century modern interiors.
Multi-room heat distribution: If you want heat to reach an adjacent room or a zone above the fireplace, look at the Echelon II's Heat Out and Heat Zone accessories. These redirect the fireplace's heat output through ductwork rather than allowing it to discharge passively forward. The Meridian series also supports Passive Heat accessories that allow TV mounting as close as 12" above the fireplace by routing heat output sideways or upward instead of directly into the room above the firebox.
Worth Considering for Large Rooms: Majestic Echelon II 72"
A few oversights commonly lead to installation problems or post-purchase issues.
Budget for a trim kit. Direct vent fireboxes are designed to sit within a framed cavity. The front of the firebox typically does not include a finished facing. Most Majestic models list a trim kit or clean-face front as a required accessory. Confirm which front options are compatible with your specific model and size, and include the cost in your total budget.
Measure ceiling height clearance. The Sierra Flame Palisade, for example, requires a minimum 40" internal ceiling height for the framing cavity and a 40" minimum mantel height. The Majestic Meridian and Quartz have their own clearance requirements specified in each installation manual. Do not order without checking these against your rough opening and ceiling conditions.
Confirm gas line entry position. Direct vent fireboxes have gas line entry points on specific sides or at the bottom. Confirming the entry location before construction begins avoids cutting into finished walls after installation.
Plan the vent path before selecting a model. Some configurations support only top vent exit; others also support rear. If your installation requires a rear exit, confirm it is available for the specific model and size you want. The Majestic Meridian supports both top and rear vent configurations on some models. Verify in the installation manual for your specific SKU.
Understand operating cost. Direct vent efficiency is typically in the 60 to 70 percent range depending on the model. At that range, a unit running at 30,000 BTU on natural gas consumes approximately 0.4 to 0.5 therms per hour at full output. At current national average gas prices, that translates to roughly $0.40 to $0.65 per hour at full output. Most users run at lower settings most of the time, so real-world costs tend to be lower than that ceiling.
A direct vent fireplace uses a sealed combustion system: it draws air from outside for combustion and exhausts all gases outside through a dedicated two-pipe vent. Indoor air is never involved in the combustion process. A vent-free fireplace burns gas using indoor air and releases combustion byproducts into the room, relying on high-efficiency combustion to keep those levels within regulatory limits. Vent-free units are simpler to install but carry BTU limits, are restricted or banned in some states and municipalities, and are not recommended for bedrooms or small, poorly ventilated spaces. Direct vent is the appropriate choice for whole-room or primary heating installations.
Generally yes. Because the combustion system is sealed from the living space, direct vent gas fireplaces are approved for bedroom installation in most jurisdictions, unlike vent-free or B-vent units which draw combustion air from the room. Always verify with your local building department before proceeding, as requirements vary.
The fireplace unit itself ranges from about $2,259 for the Majestic Quartz 32" to over $9,499 for the Sierra Flame Vienna 60". Installation adds the cost of framing, vent components, gas line extension if needed, a trim kit, and labor. Total installed costs for a straightforward single-story horizontal-vent installation typically run $4,000 to $8,000 or more, depending on the model and the complexity of the vent run.
Yes, for the ignition system, controls, blower fan (if included), and LED lighting. Most models including the Majestic Meridian, Echelon II, and Quartz include battery backup, so the fireplace can operate during a power outage. The gas valve and flame function without grid power when the battery backup is active, though powered accessories like the blower and lighting will not run.
Maximum vent run length varies by model and pipe diameter. Most residential direct vent fireplaces support total equivalent lengths of 30 to 50 feet, with each 90-degree elbow counting as several linear feet against that total. Check the venting section of your specific model's installation manual for the exact limits and calculation method before planning the run. Exceeding the maximum run or using too many elbows can cause combustion and draft issues.
Yes. Direct vent gas fireplaces require a natural gas or liquid propane supply line at the installation location. If there is no existing gas line in the wall, a licensed plumber or gas fitter must extend one. This can be a significant cost factor if the fireplace is being added to a room with no prior gas service.
Browse the full selection of gas fireplaces at The Fireplace USA to compare sizing, configurations, and pricing across all available models.
